Cutter Suction Dredger
| Vessel Developer | IHC Holland |
|---|---|
|
Classification |
B. V (Condition Survey), MMD -Govt. of Pakistan |
|
Refurbishment |
(March-2009) |
Dimensions
| Length O.A. (M) | 48.80 |
|---|---|
|
Breadth (M) |
11.90 |
|
Depth (M) |
2.85 |
|
LDT (Tons) |
450 31 |
|
Dredging Depth (Max.) |
18.00 |
|
Dredging Depth (Max.) |
18.00 |
|
Cutter Power (HP) |
750 |
|
Accomodation |
|
|
Mess Room |
01 |
|
Kitchen |
01 |
Main Machinery
| Main Engine BHP | 1125 HP x 2 @1,225rpm |
|---|---|
|
Main Engine Type |
Caterpillar (USA) D-399TA |
|
Main Genset |
1125 HP |
|
Main Type |
Caterpillar (USA) D-399TA |
|
Main Dredge Pump |
35,000 cub. mtr / day * |
|
Suction |
28 inch Dia |
|
Discharge |
26 inch Dia |
|
Floating Pipeline |
650 meters |
|
Shore Pipeline |
1350 meters |
* Conditions apply
Main Fire Fighting & Life Saving Equipments
B.V.Coastal Service (expired) Comply with SOLAS and flag country as regards firefighting & life saving facilities requirement.
Portable Fire Extinguisher: 8 x 9 kg CO2 , 4 x 8 kg Dry Powder; 1 x 45L Foam Fire Extinguisher (cart-pushing); Electric Fifi General Pump Power: 36 cbm/ hr. Standby Electric Fifi Pump power: 36 cbm/ hr. Emergency Motor Fifi Pump Power: 36 cbm/ hr.

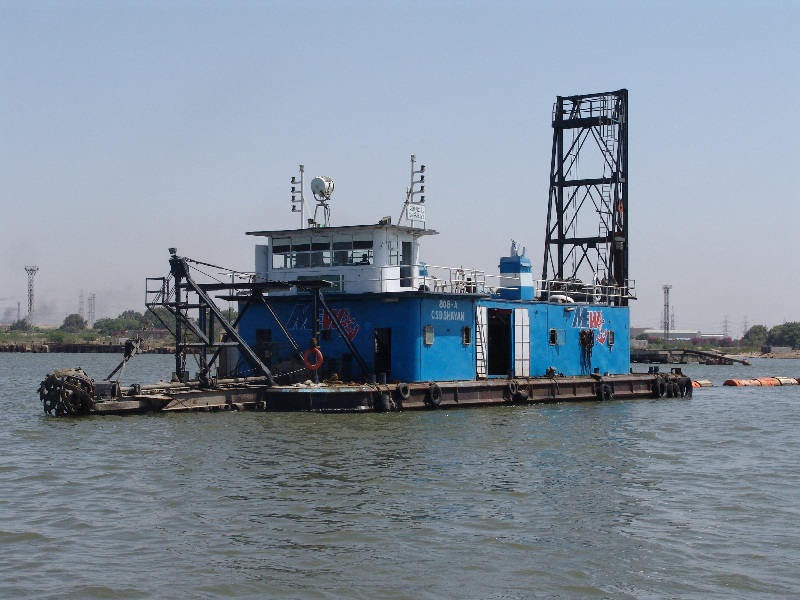

| Vessel Developer | Karachi Shipyard and Engineering Works |
|---|---|
|
Classification |
MMD -Govt. of Pakistan |
|
Year of Built |
1990 |
Dimensions
| Length O.A. (M) | 35.0 |
|---|---|
|
Breadth (M) |
9.0 |
|
Depth (M) |
2.0 |
|
LDT (Tons) |
175.03 |
|
Dredging Depth (Max.) |
10.00 |
|
Cutter Power (HP) |
250 |
|
Accomodation |
|
|
Mess Room |
01 |
|
Kitchen |
01 |
Main Machinery
| Main Engine BHP | 1565 HP x @1,800rpm |
|---|---|
|
Main Engine Type |
Caterpillar 3516D1-TA |
|
Main Genset |
381 HP |
|
Main Type |
Caterpillar 3408B-DI-TA |
|
Main Dredge Pump |
10,800 Cub. Mtr./ day * |
|
Suction |
20 inch Dia |
|
Discharge |
18 inch Dia |
|
Dredging Equipment |
|
|
Cutter Blade |
Dia 1600mm |
|
Hydraulic Drainer Winch |
1 No. 10 Tons Pull |
|
Winch(Anchor) |
2Nos. 10 tons Pull |
|
Nautical & Communication Equipment |
|
|
Air Horn |
Electric |
|
Compass |
Magnetic Hydraulic |
|
VHF |
Sailor |
* Conditions apply
Main Fire Fighting & Life Saving Equipments
Portable Fire Extinguisher: 8 x 9 kg CO2 , 4 x 8 kg Dry Powder; 1 x 45L Foam Fire Extinguisher (cart-pushing); Electric Fifi General Pump Power: 36 cbm/ hr. Standby Electric Fifi Pump power: 36 cbm/ hr. Emergency Motor Fifi Pump Power: 36 cbm/ hr.

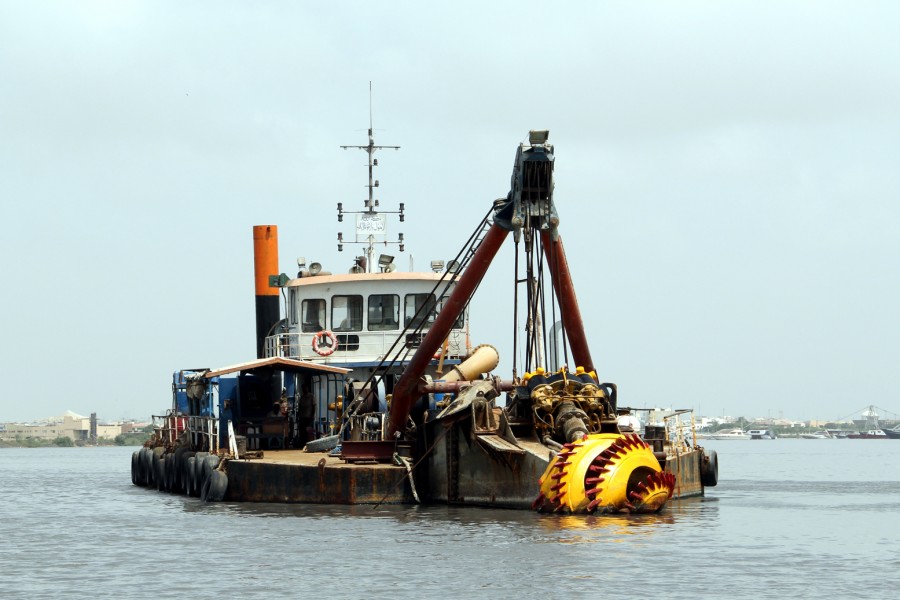

| Vessel Developer | Sydney Australia |
|---|---|
|
Classification |
MMD -Govt. of Pakistan |
|
Year of Built |
(Rebuilt – 1994) |
|
Flag |
Pakistan |
Dimensions
| Length O.A. (M) | 36.27 |
|---|---|
|
Breadth (M) |
9.45 |
|
Depth (M) |
1.83 |
|
GRT |
177.31 |
|
NRT |
147.68 |
|
Dredging Depth (Max.) |
15.0M |
Main Machinery
| Main Engine BHP | 1500 @ 1,500rpm |
|---|---|
|
Main Engine Type |
Caterpillar (USA) 3512-Dita |
|
Main Genset |
165 – 206 KVA |
|
Main Type |
Caterpillar (USA) D-343 |
|
Harbour Genset |
125 KVA |
|
Harbour Type |
Caterpillar (USA) – D-330 |
|
Main Dredge Pump |
6000 cub. mtr / day * |
|
Suction |
20 inch Dia |
|
Discharge |
18 inch Dia |
|
Floating Pipeline |
1000 meters |
|
Shore Pipeline |
1000 meters |
* Conditions apply
Main Fire Fighting & Life Saving Equipments
Comply with SOLAS and flag country as regards firefighting & life saving facilities requirement.
Portable Fire Extinguisher: 8 x 9 kg CO2, 4 x 8 kg Dry Powder;1 x 45L Foam Fire Extinguisher (cart-pushing); Electric Fifi General Pump Power: 36 cbm/ hr. Standby Electric Fifi Pump power: 36 cbm/ hr. Emergency Motor Fifi Pump Power: 36 cbm/ hr.

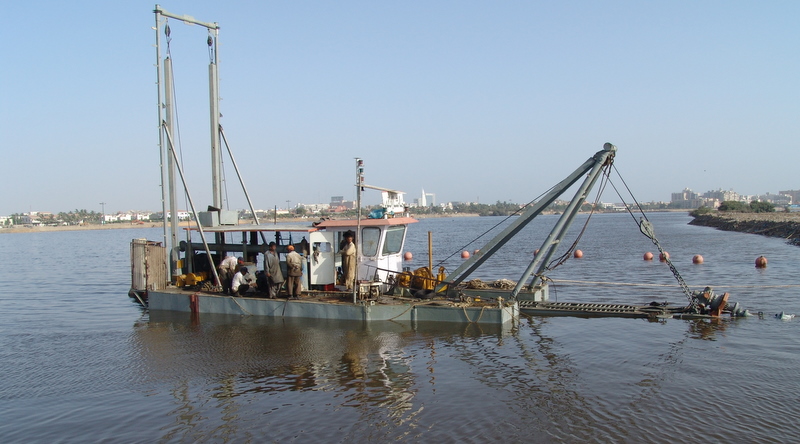

| Vessel Developer | United States of America |
|---|---|
|
Classification |
MMD- Govt. of Pakistan |
|
Year of Built |
1993 |
|
Flag |
Pakistan |
Dimensions
| Length O.A. (M) | 25.00 |
|---|---|
|
Breadth (M) |
6.00 |
|
Depth (M) |
0.50 |
|
GRT |
90 |
|
NRT |
70 |
|
Dredging Depth (Max.) |
8.0M |
Main Machinery
| Main Engine BHP | 450 @ 1500 rpm |
|---|---|
|
Main Engine Type |
Caterpillar (USA) 3408 |
|
Main Dredge Pump |
1000 cub mtr./ day * |
|
Suction |
12 inch Dia |
|
Discharge |
10 inch Dia |
|
Floating Pipeline |
200 meters |
|
Shore Pipeline |
300 meters |
* Conditions apply
Main Fire Fighting & Life Saving Equipments
Comply with SOLAS and flag country as regards firefighting & life saving facilities requirement.
Portable Fire Extinguisher: 8 x 9 kg CO2 , 4 x 8 kg Dry Powder; 1 x 45L Foam Fire Extinguisher (cart-pushing);
